horacio2222 i mean the problem literally keeps changing without me doing anything. its like its trying to mess with my head.

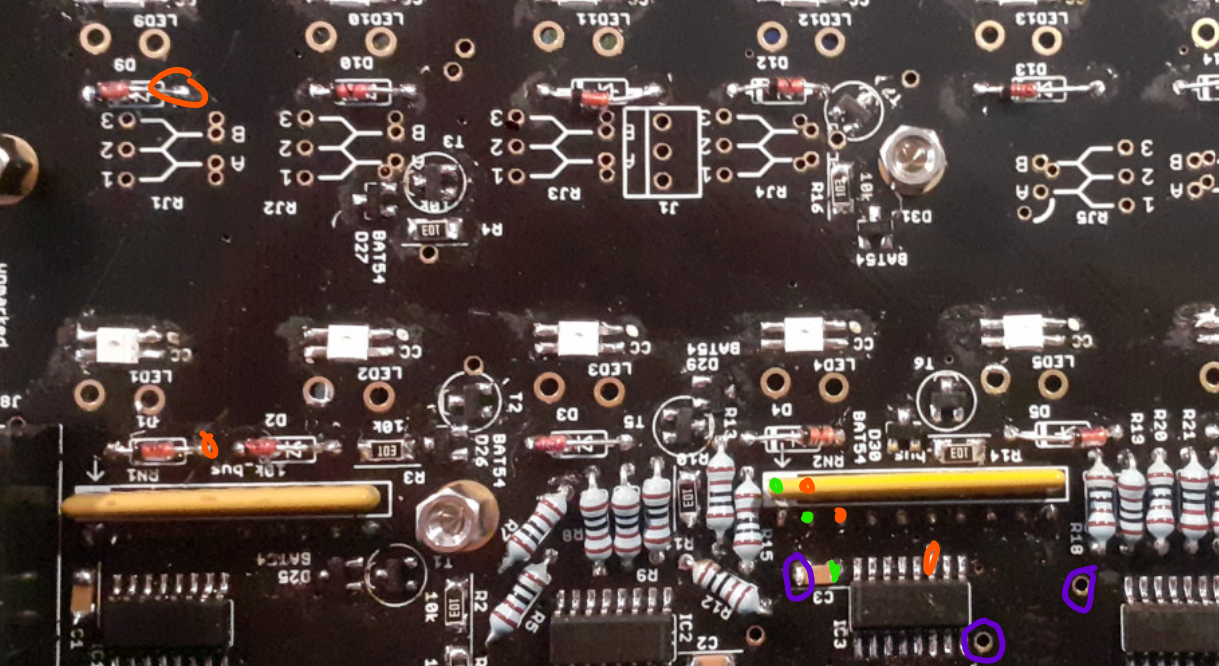

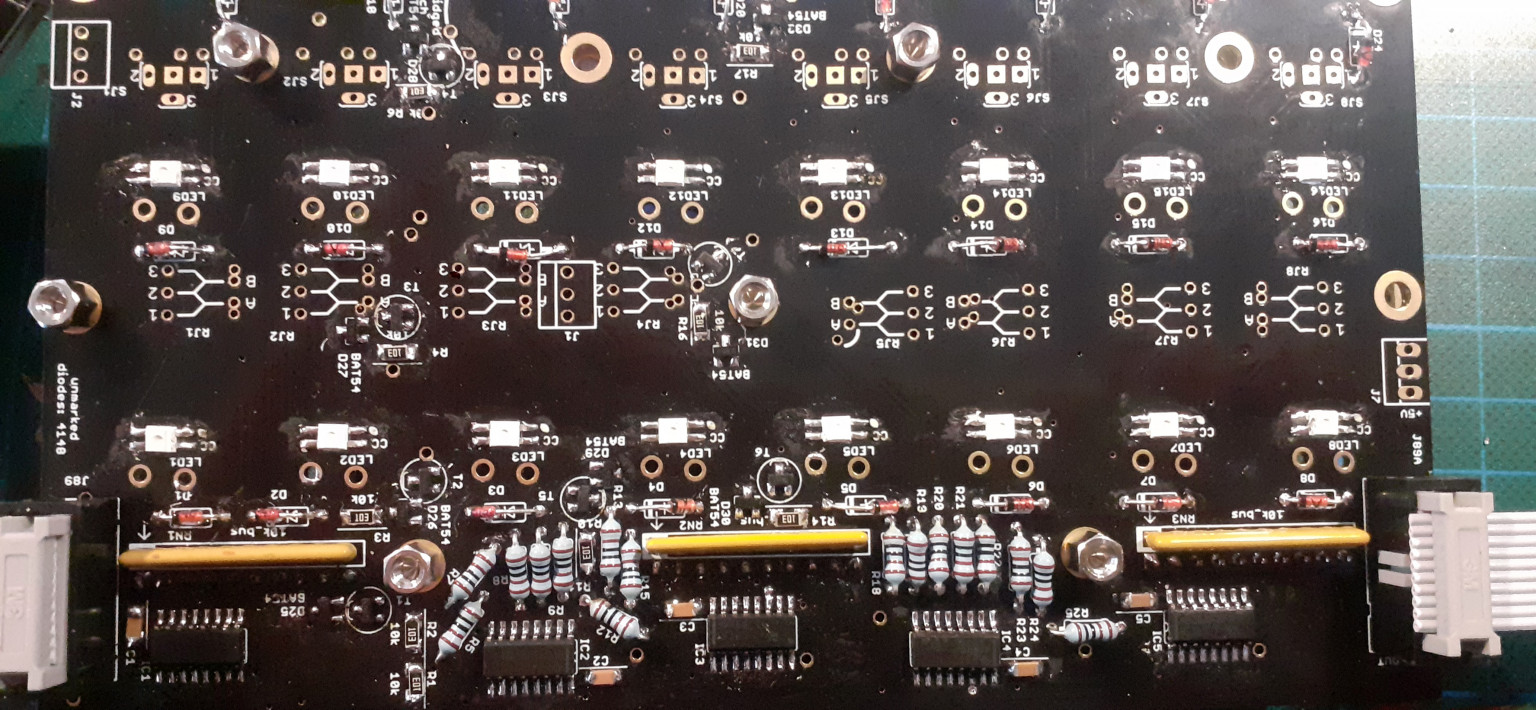

Try not to get too frustrated, you have all of the info above to check your work. An intermittent issue normally points to a loose connection, so all of those solder points, the pin headers or just a bad connection between the two boards. Or maybe even the shift register itself.
The diodes count up rightwards in conjunction with the encoders. I haven’t seen one fail yet.
horacio2222 is there any documentation on how to set the resistors up for different color schemes with the leds on the matias switches? cheers!
The RJx are numbered per x LED column. Connect driver side A/B to 1 = red, 2 = green, 3 = blue. The normal config is A1 B2 for all columns, but you can pick different ones.
